Month: October 2024

I’ve been pondering what to write about the conclusion of the very difficult to sit through and interpret info in the videos, along with the accompanying text. So, this post is sort of an intermission but also stating of a conclusion that I think is worth noting, and I’ll explain why below.

When I’m testing something, I hope to see something definitive or dominant. Dominant is a game theory strategy to me, because it’s one of the few classes I remember from college. A dominant strategy in a game is one where you will prevail regardless of how well your opponent plays, at least as long as you play to the strategy. Tic Tac Toe, for example, does not have a dominant strategy between two capable players. That was literally the first assignment in game theory – on paper (1997, for anyone young) – draw out all tic tac toe variations to find a winning strategy. I drew all of them – it was insane. I found no winning strategy and was really pissed figuring I’d missed it, because I struggle with basic executive function things and at some point in my life, it will burn me. I am pretty good at solving problems and contributing when someone else does the routine stuff, and then at least when I’m being paid, communicating what I solved and what’s important. Free writing like this, not so much.

Chisels aren’t tic-tac-toe, but I know the things that make for a chisel I don’t like. I also know what to do with any decent chisel such that I cannot sit here and tell you, for example, that I think the Richter has slightly enlarged grain, so you shouldn’t buy one. First of all, I’d have to buy a bunch of them to see if they all look the same. I’m not going to do that. Second, I know how to address minor issues with chisels at least several different ways. When I took the 52100 chisel of my own make and then the Richter, which fared poorly in the first test – noticeably worse than anything else, and honed a bevel of about 33 degrees on the chisel, it held up fine in what’s heavier work than most people would do (30 ounce mallet, red oak, 1/8″ bits malleted off). What’s to conclude? I could buff the chisel a little more without ever testing any of this and probably be pretty happy with it in use.

Nothing in this test showed up out right defective or out of spec to any significant degree, so the test is a failure of sorts, except to provide that information, which in a sense is a success. If you see the next Wright doing a test with some kind of string device and a fixed set of parameters, think about what I mentioned about the Ricther. Pushed to the point where all chisels damage, it takes a lot more damage. If that’s the only piece of data you get, you’ll think it’s brittle. It took exactly one attempt with a microbevel to get it to hold up fine. Both chisels held up so well that other than getting through wood a little more slowly, the lesson in the setup is 10 times more valuable than the test.

And something I know from experience, but didn’t have to deal with there by choice – a chisel that grinds slowly or hones slowly is a nuisance. A chisel that is too soft to hold a thin enough edge to not really be a lot of physical work in hardwoods is a real nuisance. We didn’t have either of those, so all of these chisels are fine.

The Zen Wu chisel is heat treated properly, it’s right around its hardness spec and the curiosity from the start here was to find out if someone would make an affordable file steel chisel. In relative terms, it’s that. The surprise is then that someone would make a chisel that’s probably better for $10 per, just with an abysmal handle, and I can’t help but say it, the Wu chisel appears to be a copy of something made in the west by LV and I just don’t like that. It doesn’t matter if it’s Woodpeckers or LV, I don’t like copying things even if it’s half hearted, unless they’re kind of public domain. copy a Ward chisel or an 1880 marples? As long as they’re not marked fraudulently, no problem. But to lift the design from LV for the most part? It stinks of either being tone deaf, or intentionally trying to shave some from LV’s coin via trade dress fouling.

I’ll still write a separate post with some aspects about each chisel, except I’ll leave mine out. They were there just as much for my own curiosity.

Lastly, before my conclusion – I thought it would be interesting to see if there is visible damage. There is. It’s harder to photo than it is to see it or feel it, but this is the scale of the damage we’re talking about from the pretty harsh looking damage in the videos.

Top to bottom 1) 26c3, 2) Zenwoo, 3) Ward , 4) House 52100. The 26c3 has less damage in the video, again I think the chisel itself has a lot to do with that, from the thin harder to hit handle, to spring, and even to the fact that with the same passes across the buffer, it will allow more steel to be buffed off even than 52100 probably by 25%. It holds up well, but it was 10 or 20% slower in strikes to get through the wood. The others here were about the same.

52100 is weird looking – while the other chisels show a white line of deflection, the 52100 almost takes a polish at the edge. It always does this, and I have no idea why – the damage is there, but the edge turns dark like that. it’s not an indication that it did better, it just looks different.

The other interesting bit here is the third chisel from the top – the Ward – is somewhat soft on the top corner and if you look really closely, you can see that the edge is knocked back a bit. That is where the big foil showed up in the scrolling video. But it’s only a small part of the edge, and while it would be a completely obnoxious situation if the whole edge was like that, it had surprisingly little effect if more than just that corner was in the cut. What it did do was prevent me from placing the chisel by handle and getting it to “stick” at a spot just before malleting. Stick just means you place the chisel and it doesn’t move. That littel deflection was enough to cause that issue and is a good reminder to me to be patient when grinding the bevels of my own chisel. I think I sent someone a chisel like that (Steve) and maybe it was just at the very edge, but it’s not hard to avoid and every issue I’ve had with temper or poor heat treatment has been something done in haste.

Since the Ricther came the next day, I didn’t get it in the above picture, but did take another one later. The 100cr-v chinese chisels came after this and I have no such picture, but there wouldn’t be much to see. This is the original test picture of 52100 compared to the Ricther. There is finally enough to see here that you can see some areas of deformation get away from the edge line enough that you’d have to do a good bit of extra work to resharpen. So, you would just set the chisel up so this doesn’t happen – that was easily proved.

The Ricther, is, of course, the one on the bottom. And it looks like the angle I had to take the picture somewhat disproves my statement above about the black edge on 52100. the little holes are dents from the hardness tester. the fact that the 52100 chisel seems to have a zillion on it is both from testing the results with it and then from doing another hardness test a few times because I did nothing to record the earlier results. it’s a mule, so it doesn’t matter. When I make chisels for other people, I try to get the hardness tester denting on the top side of the bevel before finish grinding, and it’s generally gone then.

So, Here’s my Thoughts

You’ll never read a chisel test that will tell you much other than some subjective things, unless you see chisels that are 60 hardness or below. If you work in hardwoods, you’ll prefer something 62+ as long as it’s a steel with enough toughness.

The rest of the charts and string tests, etc, aren’t useful. They’ll distract perhaps from the things you really need to know, which is what form do you like? If you pinch blades, you won’t like German chisels and probably not English tang chisels. If you hold handles, you’ll probably like English chisels a lot, and the more plain handles styles at that. They may look common, but they just irritate less than other handles.

There’s no reward that I’m aware of in any case, no matter what the test is, to seek abrasion resistant chisels for cold work. So any test that tells you that you need something that’s abrasion resistant or high speed steel for bench work is operating on some premise that the setup of the test shows a difference you’ll never see in educated work with a chisel. But you’ll notice that those chisels are a pain, and if someone is sharpening in four minutes with a honing guide, their opinion on sharpening time or method is not yet mature. And you can ignore it.

The lack of success in this test just goes back to why I don’t test chisels much – I think there isn’t much good information in chisel tests other than hardness and alloying information. It doesn’t take much to provide that info.

The answer to that, of course, is one single good one is enough. Good in my book would be a strong cutting stone as far as washitas go, as you can always allow one to break in and you can palm strop to hair splitting after some light pressure strokes. And then get beyond 8k waterstone type edges in ten or 15 seconds with something really cheap.

On another quick weekend home to visit my mother, who at this point won’t remember that I visited, but my dad definitely does, I stopped again at the “honey hole” along US route 30. This time, I didn’t stop for antiques, I stopped to pee, but I do have a want that I’ll need to fill eventually – one of the old cobbler’s lasts as I am getting to the point that I want to buy permanent shoes and boots and do my own resoling. Or have bought.

I have fallen in love with moc toe boots, perhaps due to being somewhat obese and aging at the same time, but also due to the fact that you can strip a sole off of them a couple of times and reglue another on before having to have the job done properly down to the midsole.

At any rate, I figured there’d be two in every flea market, but no luck yet.

However, there is a dealer flipper at this flea market who pulls in stones. Funny enough, I think there was a shapton grit like japanese setup with a kanaban, all complete for about $15 and in great shape, and there’s a host of would-be useful finer india stones that I just don’t need because I’ve got a lot of that stuff already. Everything stone-related there is cheap, and so is basic component stuff, like the hardened starrett or mitutoyo rules that are matched to heads. There are so many that you can quickly get three together and check that they reference each other proving that they are lightfast. One of the things I’ve wanted to do for a while is get another starrett 24″ straight edge, but I’ve got 36″ and 48″ beveled starretts and just can’t justify being so lazy as to spend another $140. I guess I could, just won’t.

The 24″ hardened rules are awfully functional and there must be ten of them in little or unused shape for $35 each. I got one last time I was there.

Short Story Long

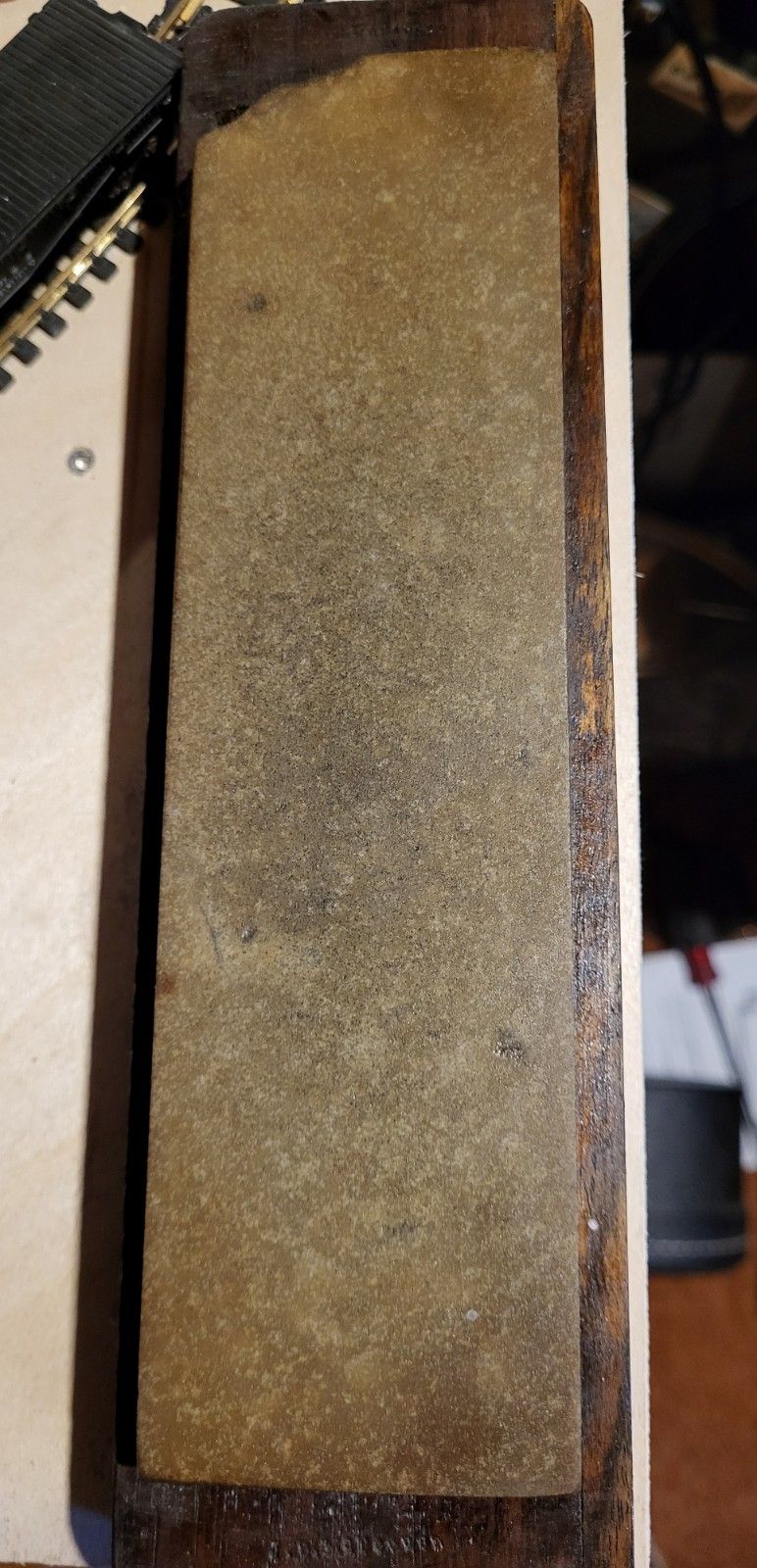

Never found the shoe stuff, don’t need more straight edges but the oversized washita above with a corner broken off was $6. It’s more than an inch thick, also and before cleaning it a little, I could see enough to know it would have a nice texture.

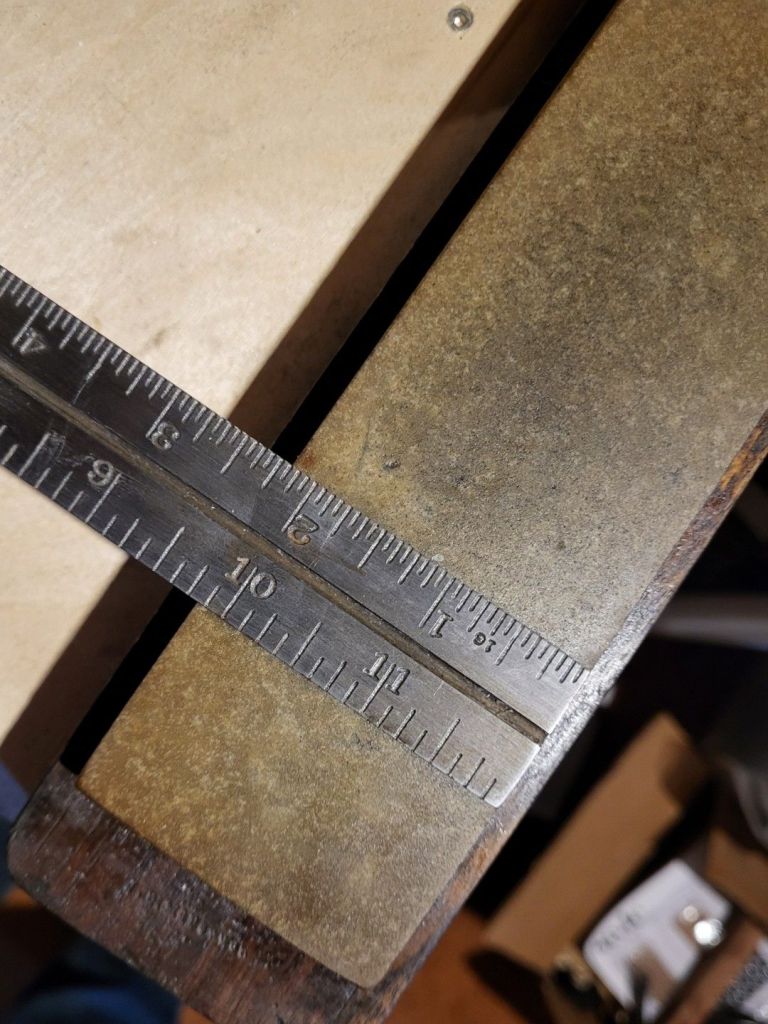

Just under 2 1/4″ wide

Just over 8″ long

There is a lid for this box with leather so old you could scrape it off in dust. No problem. if you look closely, the right side of the box is not original. It was missing. I put some kind of exotic on the side after flushing off the broken bits and glued it, then pigmented it and put shellac on. It looks less of a match in person, but it’s a $6 stone.

I also managed to find that the seller had bought gobs of finger stones. I think for a woodworker, these little stones will seem pointless. If you’re making tools, though, and you can find all manner of little really fine synthetic oilstones that are a little friable, they are gold for surface finishing little stuff. But they’re not that inexpensive once you start adding piles of them to a cart.

In this guy’s shop, they’re $1.25 per.

I haven’t got a need for this stone, but like pizza, I just want to see if this one is a little better than the ones I already have.

A close up look of the color at the top and bottom of the first picture is a better indicator of what this stone will look like. It sound stupid, but I really like the way they look. The color, to me, is “earwax”. not sure how else you’d describe it, but I find the texture and the color monstrously pleasing in a way that a normal person may not get. It was almost flat to start with – this is five minutes of lapping on worn out paper that was already in line to get changed off of my glass lap. A little more should have the entire surface looking like it does here.

Plenty of things are no longer on the ground, but the little finger stones, I find with some regularity. Washitas and other naturals, not quite as much, but sometimes, and my very favorite of these as far as cutting goes have all by some chance been unlabeled stones that have this kind of appearance.

This is what I did to test chisels that are shown in the videos on page 1. Again, every time I talk about those videos, I have to apologize for how hard they are to get information from and when there are six relatively good chisels, how little you can actually do to ethically say “this one is good and the others are terrible and nobody could work with them”. We didn’t include chisels like that. The most highly alloyed in the whole test is 52100, which is similar to O1 in terms of alloying mass, though a little different in flavor. Everything else, though not tested XRF, is by feel, more plain. I can vouch for 26c3, but the India stone communicates how plain the two Chinese chisels are and how plain the Ricther is. All three are steel with additions for properties, and not additions for wear or to impart really high toughness like 52100.

But regardless of that, here are the details:

Sharpening

1. Ground flat bevel at 23 degrees on adhesive backed paper wetted to prevent any heat issues
2. Honed at a very slight lift on fine india and “Dan’s hard” a less than ultrafine stone, but still fine
3. Buffed tangentially three passes for each chisel, which protects the edge a little bit but is not the full unicorn treatment.

From a later trial, this is much more protection than something like a 25 degree angle, but less than 33 or 34 degrees.

The Test

• 30 ounce verawood mallet wrapped with horse butt.
• Red oak, flat sawn , so quartered orientation at the edge. Each chisel mallets two separate blocks of wood 3/4″ thick x 1 1/4″ long by 1 3/8″ deep. The wood is marked every 1/8th inch to make sure the malleted leaves removed are even.
• Malleting is done briskly, but it is not intentionally harsh and the chisel is not allowed to bounce or wobble while being struck.
• The work is straight in, with the waste side forward and bevel of the chisel forward.
• The first cut in each leaf is the same corner of a chisel embedded. Meaning 3/4ths of the width is chopped off of the test piece, and then the last quarter is chopped off with the same side that was already in the cut. This is important to identify corner issues that may not show up in a test where corners are never in the cut.
• If a chisel is wider than needed to perform the prior bullet point, the excess width is not contacting wood anywhere in the test. that means the same working length of the edge on each chisel should do the same amount of work the same way.
• Two separate cells are chosen and each chisel in the “core four” works one cell, an then the others do, and then this is repeated once more

That’s it. I strike all of the chisels the same, as you’ll end up doing if you’re a hand woodworker and with experience. Work is in rhythm and much the same within a task.

Red oak isn’t terribly hard on edges, but it’s not easy on edges like cherry or mahogany. It makes a good test medium because it’s hardwood and not something abrasive but not hard or hard to the point that the stock is rarely used. For example, this test done with gombeira or katalox would’ve provided damage at even normal setups, but it’s not useful in general to do that because people hand working significant amounts of either of those are rare. Damage that occurs relatively so in katalox isn’t necessarily predictive of damage that will happen in cherry or soft maple. Even in relative terms.

A Control Check

Richter and 100cr-v Chinese chisels were purchased after the “core four” were tested, with the Richter test being done soon after, but the latter being done long enough later that the sharpening feel wasn’t fresh in my mind.

The Richter test is worse than the others notably, at least in the more aggressive setup, but the results are in line with how easy a section of edge was punched out, as well as what appears to be slightly enlarged grain on a relative basis.

Because the Richter results were so disparate, I honed the 52100 chisel and the Richter chisel in a honing guide to an angle that is 34-ish on an old microebevel contraption that I have from long before 2010. Nearly all of the gap between the two chisels disappeared at that. For this kind of work, that sort of edge treatment isn’t unreasonable, though it was less easy through the wood than the original test edge. Very little damage occurred in either chisel in that case.

I see this as confirmatory, both in confirming that reasonable setup efforts negate needing to pursue an ideal, as well as confirming that when absolute damage levels change, so too can relative differences.

By this, I mean that when you see someone online performing any test, even if it’s in a machine, and you see large differences in results, you should request that the person figure out what setup is needed for the performance gap to close. if it never does, one chisel is better than the other. if it closes with a few degrees of adjustment, you may still prefer the chisel that didn’t “win” the initial test. A real-life example of this is my start at mortising plane bodies. I wanted a chisel that would hold up the best and bought an expensive japanese chisel (Imai). The Imai chisel didn’t hold up very well in actual work compared to a stanley or PS&W chisel that just had a couple of extra degrees of bevel. The Imai chisel would’ve won a chisel test pretty easily where a fixed angle of 30 degrees was used just because it’s harder. It took far less long to do the work from one plane to the next with the stanley and PS&W chisels because while they didn’t hold up at a lower angle, they held up fine at an angle that the Imai chisel also needed to hold up mortising beech. And took much less time to sharpen. That actual act was probably the first step toward unicorn, just modifying the tip of a chisel a little to see what would happen and finding out how little it took to stop the damage.

There’s an urge to describe everything about the test here before discussing results, but I think I’ll leave that to the end. Before getting into the details, one thing was pretty clear from the 6 chisels I tested. All of them could be set up to take no damage without trouble, even though at a specific setup, some perform better than others. The gap between the worst and the best does not remotely approach having to deal with a chisel that’s soft and rolls. None of these really do.

That also means coming up with a realistic way to show failure rather than a “bess” tester and some arbitrary nonsense, I had to set the chisels up so they’d fail a little, and ignore setting them up so they wouldn’t. The whole unicorn thing covered addressing edge failure, but also did include that it doesn’t have to be a buffer doing it. You can, if you choose, just continue to increase bevel angle a degree at a time and on any good chisel, the difference between the best and worst of good chisels will probably be a degree or two.

So, I attempted to do something else here because the damage created by the test is relatively universal at the edges, but it’s also almost impossible to get a “here’s a typical picture, here’s the worst and here’s the best part of the edge”. I could do that, but it’s really subjective. So, instead, I attempted to take video of the edges being scrolled, and doing that is…really difficult. The chisels aren’t dead parallel to the microscope lens, and I have to move the chisels laterally but the platform on my scope doesn’t really allow for setting a chisel entirely on the platform – the end has to sit on something off of the scopes platform, and that gives us a combination of some things. Those include the edge going out of focus as the chisel is scrolled due to changing distance from the lens. The edge wanders sometimes away from the center of the lens – so while we’re scrolling along the length, it’s attempting to move laterally off of the screen, and the scope’s software is attempting to auto correct light – which works like shit. This scope is ideal for taking static pictures, but the videos will be really difficult to watch. So, the results don’t suffer the same ills as taking pictures and cutting test wires or whatever, and getting a bunch of data that may not be worthwhile, but observing the scrolling and having the software for the scope make judgements is challenging.

Before describing the details of the tests and the chisels in greater levels, I think one blog post with the videos will be fine. They’re all malleted in the same wood with the same mallet at the same striking force, and sharpened the same way. No chisel has its original edge. I’ve nicked the chisels that aren’t mine – think BB sized nicks, not sand, and then ground the bevels back and re-established an edge so that we are not dealing with an overheated edge from factory grinding that throws off the test. It’s my opinion that if you have to grind off more than a tenth or eighth of an inch of a chisel to get to good steel, the chisel probably shouldn’t have been sold.

There are six chisels:

1. The zen wu “chinese white steel” chisel, lighter colored handle here, more or less a copy of the Veritas chisel design in a file steel at 63.5 hardness by my tester:

2. The Narex Richter. In this case, 63.5/64 hardness.

3. The Amazon Chinese 100cr-V chisel. Not an amazon product. Struck hardness of 63 to 64 on different parts, handles not original in this picture. Tested chisel is second from left.

4. A later Ward cabinetmaker’s chisel. Struck hardness of 61.5 – some length of this chisel’s edge on one corner is not as hard, presumably an artifact of the grinder overheating the chisel.

5. My own 52100 chisel, 64.5 hardness.

6. Thin 26c3 Chisel, one out of the group on the front page of this site, though this and others have been ground a little thinner since that picture. 65 hardness.

While I think you will have a near impossible time viewing these in general, a few comments are in order: First, the screen in the video is about 0.019″ tall. Damage that resulted in nicer use generally correlates with less deflection. Nothing survived without significant damage, and the details in a separate post with comments about each chisel and then more description of the method will illuminate why. I hoped for more separation between the various chisels, but finding the point on purpose where one or two of the chisels hold up and the others fail is just making fake news, so to speak. If it happens unintentionally over an array of conditions, it’s good data. But if nothing really stands out here, that’s better data for you.

I didn’t pick garbage chisels – these are all pretty good. At the aggressive setup of the edge, the Narex fared the worst but did OK in a later comparison to the 52100 chisel with a more robust edge. The 26c3 chisel fared the best, but it is thin and somewhat sprung and it’s pretty hard to hit as swiftly because the handle is smaller and less flat on the end. It’s probably ever so slightly technically more capable than others here, but not in a meaningful way. We are comparing for the most part, chisels that are 63-65 hardness, and nothing on the warm butter end of the hardness spectrum. In my opinion, the Narex both nicking the edge out to get a picture of the grain and in use shows some issues of hard tempering and minor grain enlargement. This is a surprise, but aside from using these chisels for mortising and prying – something none of them are really made for, the hard tempered nature is solved by not much edge accommodation.

Lastly, I tested the Chinese chisel -the amazon obtained cheap set – on a whim at the end – days later. The first test, I ended up setting the edge up a little to well and the chisel didn’t show any damage before I did the test video shown here. I just forgot when setting it up and gave it too much buffer angle. If anything, the second iteration was a bit cautious on the buffer, and the results are worse than they would be if I’d have been able to sharpen it with all of the others but the Richter. the Richter also was an afterthought, but it arrived if I recall, the day after the first test and while the damage was catastrophic, it was set up like the others. I then ran a separate test later with the 52100 chisel because it’s one thing to say it performed worse than the others with the initial setup by a pretty wide margin, but another to exclude information that it didn’t take much to set it up so that it held up fine. If you’re pretty conservative with edges, I think most of the time, you’d like the chisel and certainly I’d prefer it over the V11 chisel I tested in the unicorn test article on wood central.

Of course, I hoped my own chisels would be a measure above purchased stuff, but that’s not really realistic, and even getting a mortise chisel made by Kiyotada relatively late when his quality had really gotten dialed in, you will find that the difference between such a chisel and just a really good one found used on buyee is not that much in the steel. It’s the little things that make you prefer it – you’ll still have to sharpen it, and if you’re aggressive, it will still fail at the edge.

Looks like we ran the 10 or 11 sets of the chisels that were on amazon out of stock. I figured I’d mention this not because it’s notable that we did that, but because when I returned to the link this morning, the set of 6 is gone from the listing.

What Amazon sneakily does is route you to the 60crv aldi style chisels for $36. That’s a no go – those are $15-$20 chisels and not something I’d want for bench work.

So, just a word of caution – if the listing doesn’t say “100cr-v” in it and mention a salt bath, you don’t want it.

Set of 4 is still there for now.

Separately, looking around at other places, I see that 100cr-v is listed for a bunch of woodcraft flips. I call them flips because these kinds of tools are a flip for a tool dealer. Buy something, mark it way up, flip it. Unless we’re missing a big product development effort, there’s not a whole lot there.

Woodcraft has socket chisels with handles that appear to snap off, but they’re asking $45-ish per (!!) and of course they’d like more than twice as much for what may be the same chisels with the common looking bubinga colored handles. As in, their tang chisels might be the same as these, but the reviews would suggest QC is an issue. Of course, most of the people buying woodcraft’s house brand products wouldn’t be able to communicate if the chisels are better than most others at edge holding or not, so if they do have the same edge holding qualities, it’ll be lost on people who are trying to flatten backs with media intended to be paired with a honing guide. It’ll be rough going for them.

Work has been busy and my primary deadline for stuff – or one of them – is October 15. Anything I need to get done right away is really drop dead date of tomorrow, and aside from some other things that are part of life (busy kids and ailing parents) fall may provide a chance to get in the shop more and do more than one-off irons and grinding chisel handles.

Until then, don’t buy the wrong stuff if you do buy! I’d guess someone made the princely sum of $100 profit or so on the ten sets of chisels sold through amazon. Mind boggling.

And no, this isn’t clickbait. Because there is no revenue here and there is no incentive for ego stroking. At least I don’t think there is, but maybe ego prevents us from being self aware? If I were more confident in general, I’d consider it!

So, I’m done with the chisel test. But this isn’t that. Legitimate chisel testing is a puzzler for me because I can take any chisel and make damage stop. Anyone with experience can. The challenge comes when you decide what the setup will be to allow some damage to occur and then the results are disparate, sometimes surprisingly so, and you know that it could be just test variability or chosen parameters. So you adjust the setup, let’s say, of the poorest performer and compare it to another chisel that did better, and the results are much closer. Which is better, then? In reality, you’d take the performer and maybe use it either way, and the chisel that suffered in one test and set it up such that it succeeds.

I tested five chisels – two of my own for familiarity and then three industrially made chisels.

The subject chisel in this case that struggled wasn’t the Zen Woo file steel chisel – it did fine. It didn’t “outperform” but it was pleasant. the chisel that struggled in the original test was actually a Narex Richter. After accommodating the chisel with a little setup, it was just fine.

But the Shock

The shock is that aside from terrible handles, a 1% cr-v steel Chinese chisel that John C mentioned to me, and I found. John, if you sent me a link to it and I forgot, pardon – i can’t remember exactly what I did to find it other than confirming your wife’s account did a chisel review and I knew I had the right thing….

Anyway, that chinese chisel, 6 for $50 performed as far as I can tell as well as anything I have. And it may match my baby or pet formula, which is 64/65 hardness 26c3 chisels. The variability of results makes it hard to tell.

Before I go into details about why these chisels are exactly what I’ve tooted off about in the past (“if someone would just use a 1% steel in China with some chromium and maybe vanadium addition and put a dollar’s worth of effort into each chisel at local costs, they could make a chisel that would blow away Veritas V11 chisels for a few bucks”) …..here’s what they are (link temp. disabled – they’re out of stock and amazon automatically opens a window with a different set without notifying you the link isn’t what you clicked on…how unethical). There are several sets there, and these are labeled “6 piece” and have “100cr-V” in the description. I’m sure some of the other sets in the listing that are cheaper are 60crv, or “aldi chisels” – there is a huge difference between the two. Huge.

Note, that is an amazon link. Not also, it is not a revenue token link – you know I hate that. If you’re hoping to float to amazon and have a charity get a commission instead of this dry link where nobody does, then go through your charity of choice after you find the set in this link.

These chisels test 63/64 hardness on the pair that I’ve tested so far and they are so close to perfect heat treatment that I’m completely astonished. They are exactly what I would do if I could manage to find round bar stock in this stuff to even make a chisel.

Here’s the caveat, or caveats. These are made with a relatively automated process, I’ve got one set, the handles are absolutely terrible and you cannot live with them and will need to reprofile them and even if you get a set that is everything mine has proved to be, they are not perfectly flat.

I cannot state how bad the handles are and cannot grasp that until or unless you grasp them in person. You should not consider them at all if you aren’t willing to address the handles.

I’ve tested a V11 chisel before, by the way, and also had both house made XHP stuff as well as Veritas-made V11 irons. For application in bench chisels, there isn’t a V11 chisel that will touch this set. Not in edge holding and stability, and definitely not in honing or grinding. These are super plain steel, the grain is very fine and the edges are wonderfully stable.

The finish all in all is really good outside of the handles, aside from the quirk that they have very crisp side edges that you’ll need to address if you choose to buy a set.

So, how do you deal with the handles? There is so much wood in the originals, they can be turned into carver style handles just using a coarse sanding belt to round them into a carver style handle. I ran these around rotating until they felt round – just matching taper to the ferrule and to what looks right to my eye. I’ve made a few hundred carver style handles, so you’re on your own if you think this is harder that I’m guessing it might be. There’s plenty left, though, to the two here that are reshaped.

and again, how terrible the original handles are in shape- they are also flattened on the front. imagine a knife handle that is indexed 90 degrees from the way you’d like to hold a knife – that’s what they feel like. I know nothing else about them other than use so far, so if you destroy the handles should you buy a set, I don’t know if the tang is of appreciable length or if they are “just got out of the pool” length and need something like hornbeam to hold up well.

They are not going to be chisels you’d want to use making mortises, but chopping and push paring, they are divine once the handle is addressed, and they exhibit the sparky fast grinding and the sublime honing properties on stones that steel that is plain and hardened and tempered ideally exhibits.

I’m shocked.

Oh, the handles:

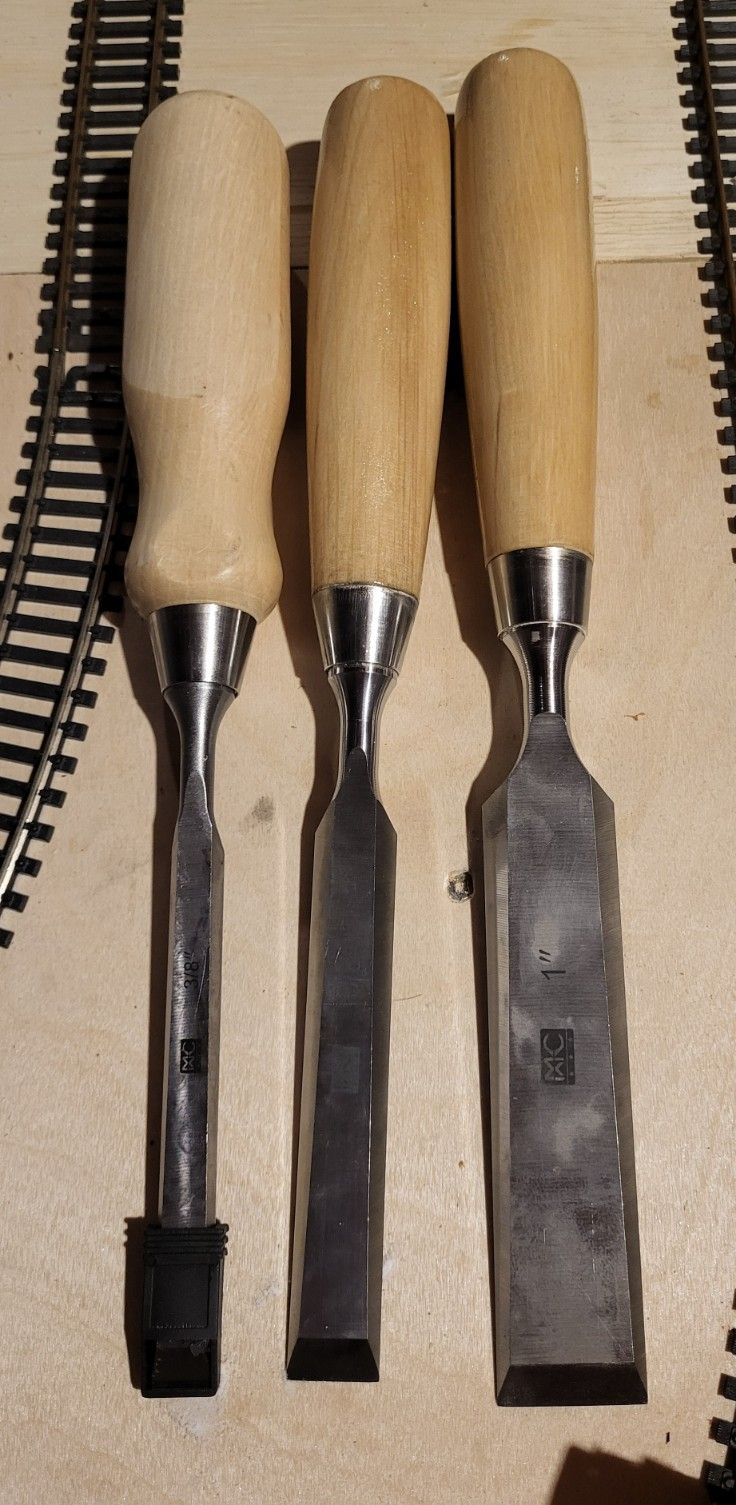

As delivered on the left, and after sanding/grinding off the excess wood on the right two. Boring hornbeam made to look a little more “lifey” with limed tung rosin varnish.

If they were delivered any harder, they’d have hard tempered behavior. if they were delivered any softer, they’d be less good.

The 59 hardness claim in the ad copy is humorous – if you heat 1% carbon steel with a small chromium and vanadium addition to a hundred degrees past critical temperature, you just aren’t going to be able to get anything that soft. I wasn’t deterred by their claims, but the key language in these is that the ad copy says that they are heat treated in a salt bath. This is not a random comment that you’ll see anywhere and salt bath is, as my guitar teacher used to say, “tits”. Flashback to the 80s when I was 12 and he said something “great”, concert was “tits”. it was just as confusing as the old people talking about tubafirs or tubafours. Maybe these are the cat’s ass instead (yeah, who knew if that was good the first time they heard it, too…especially if you ever had a cat back up into your face leaving you scrambling to get away any way you could).

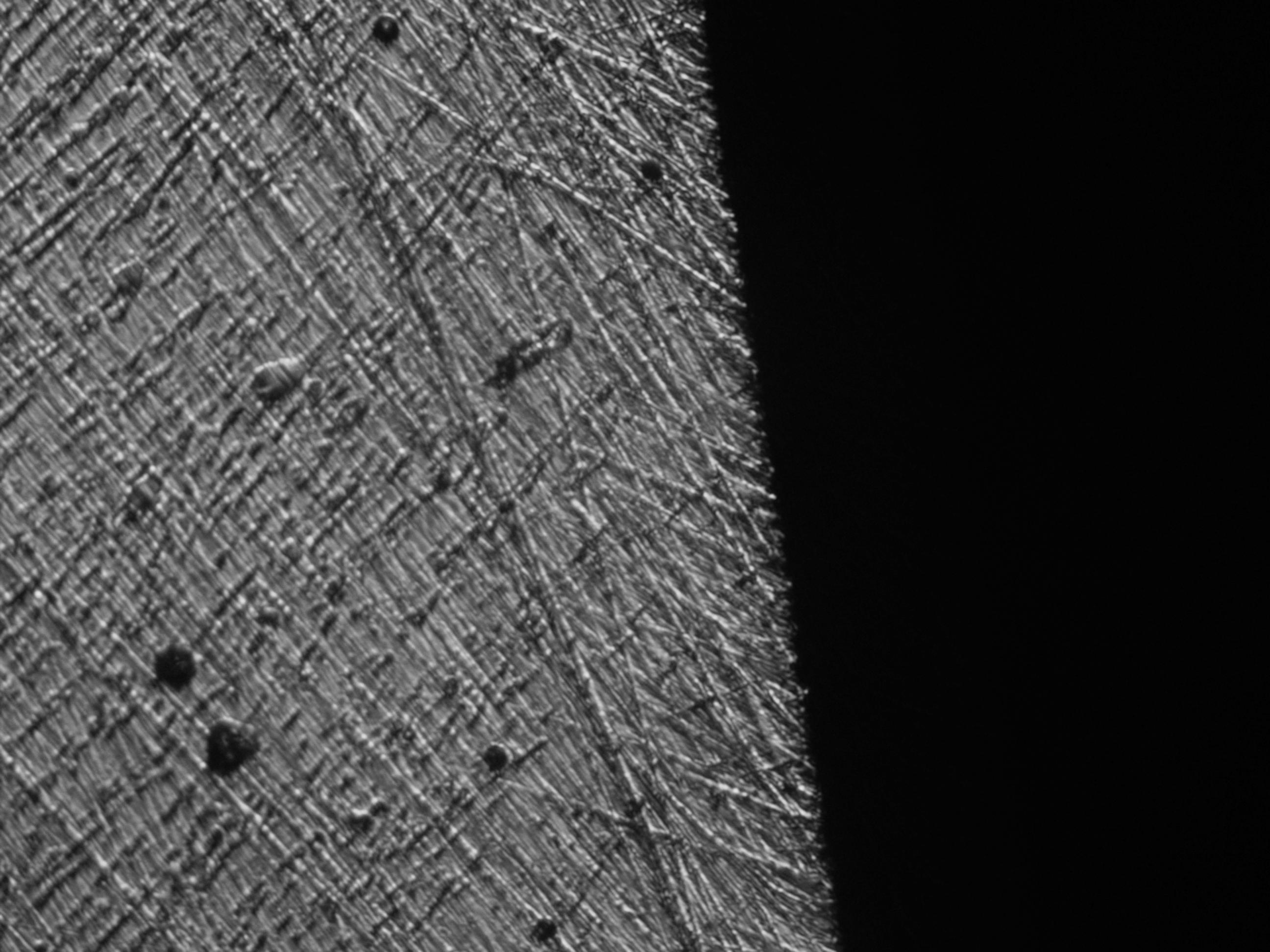

Thile we’re at it, because I took pictures, have a look at the steel magnified for the test – I gotta look. this is an intentionally chipped out section of first the Richter:

And then the Chinese chisels:

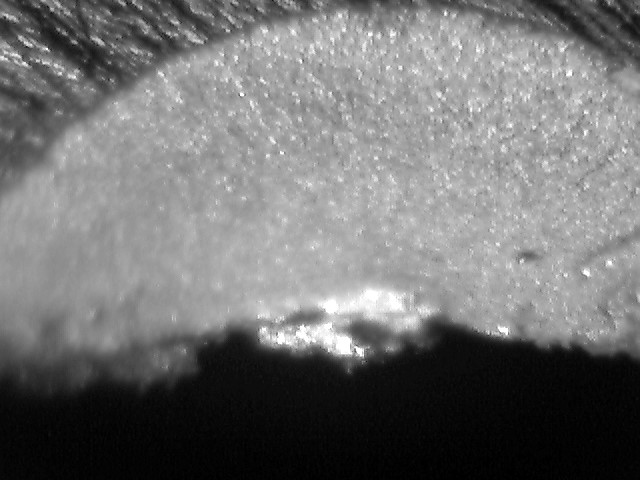

Same magnification, same scope. What do you see? The shiny part at the bottom of the Richter, ignore it. It’s probably shear. However, notice the light colored glints and the overall slightly higher coarseness of the richter picture. these are at 75 optical, but even stuff that shows up there isn’t “too small to make a difference”. The odds are the bright glints are facets of larger grains. i’ve seen what carbides look like at this magnification – they look like tiny fine stars like the little white dots in the picture below.

I think the Richter is slightly overheated, and that would explain why it was so intolerant of not being set up with a little more concession to edge holding.

This is sort of a surprise, but this is a level of grain growth that you are not likely to be constrained by if you start heat treatment as a beginner – you’ll do far worse. In my opinion, and that’s all it is, we shouldn’t see the enlarged grain artifacts in that picture and when I see grain like that in my own chisels, I generally find someone to give a tool to or toss it if it’s not in a condition that the grain cycling and heat treatment can have another round. that would be something like a bevel chisel fully finish ground -there’s too much bevel surface to have another go and get high hardness without warping.

I do not think the carbon level in the richter chisel is any higher, and both steels feel very plain on an india stone whereas something like 52100 or O1 does not.

Please Don’t be a Dick

I’d guess most of you will find this interesting, few will buy these chisels. I hope they restock them at some point without changing anything because I finally can recommend something to people who want their first good chisels. I could even spend an hour reprofiling the handles on 6 of these as a gift for someone and perhaps make them unhappy with later “premium” chisel purchases like Blue Spruce A2 or V11.

If you buy a set, I hope everyone has the manners to not gobble up the group and leave everyone out to dry.

Why am I even concerned about that? I don’t think the market itself will realize what we have here. There is truth to the issue of chisels being in a handle format and proportions that you really like, and that ergonomics are important. Do I think a new engineer or doctor on sawmillcreek will have any clue just how much potential is here if they stop checking themselves in the mirror and just fix the handle issue? probably not.

Is there an incentive for a retailer to do anything with these chisels? i don’t think so – what do you think the margin is on a set. $25?

And beyond even that, what are most people who buy chisels at aldi or harbor freight going to do with the chisels? They’re going to scrape grout in a bathroom, open a paint can or pry a nail. And with something like that, these will go from offering no advantage possibly to breaking off in the middle with enough abuse. I can make an equivalent chisel that is a little tougher, but I don’t think the open market can, and O1 or W1 at full hardness will break just as easily as these – so they’re not defective, but they won’t tolerate being used to break locks and a 0.6% carbon steel version that’s 58 or 59 hardness will bend instead, allowing the abuser to use the chisel once more while it’s just bent.

But, wow. I thought I’d be judging the Zen woo chisels, which I have done. and then thought I’d splash out and buy the richter, and what if James Wright is correct about them and it’s just a happy match for the barnacles that something good can be sold and the barnacles doing no favor for anyone else can just collect a commission, anyway. Instead, the chance to add one more on slapped me right in the face with the hypothetical “somebody could do this if there was an incentive” ….and that hypothetical at least for this small snap in the history of the universe just showed up in person.

If I got a bar of 100cr-v and manage to thermally cycle the steel and get the same result, I’d be just delighted. The small cr-v addition addresses a problem with 1095 and W1 which is it’s in a no man’s land as far as carbon in solution. I cannot get either of those to be as good as this sample thus far and have never seen either from anywhere match the results of the 100cr-v here. Those additions beyond what’s in any w series steel, but below any more highly alloyed steel just create an opportunity to prevent quite so much carbon existing outside of carbides and making the steel brittle.

100cr-v may not ring a bell. I don’t know if it’s an actual spec, or if it’s a marketing term. But I do know things that we think maybe 1095, like Case or Camillus knives or some of the previous Ontario knife efforts before they gave up and went to 1075 and just accepted a less desirable edge quality, none of those is actually 1095 steel. They are a steel that’s about 1% carbon with a small addition of chromium and vanadium, and possibly molybdenum and nickel – to address some of the things that make W1 and 1095 less than perfect for chisels and knives.

Edit to Add after Writing the Above – Construction

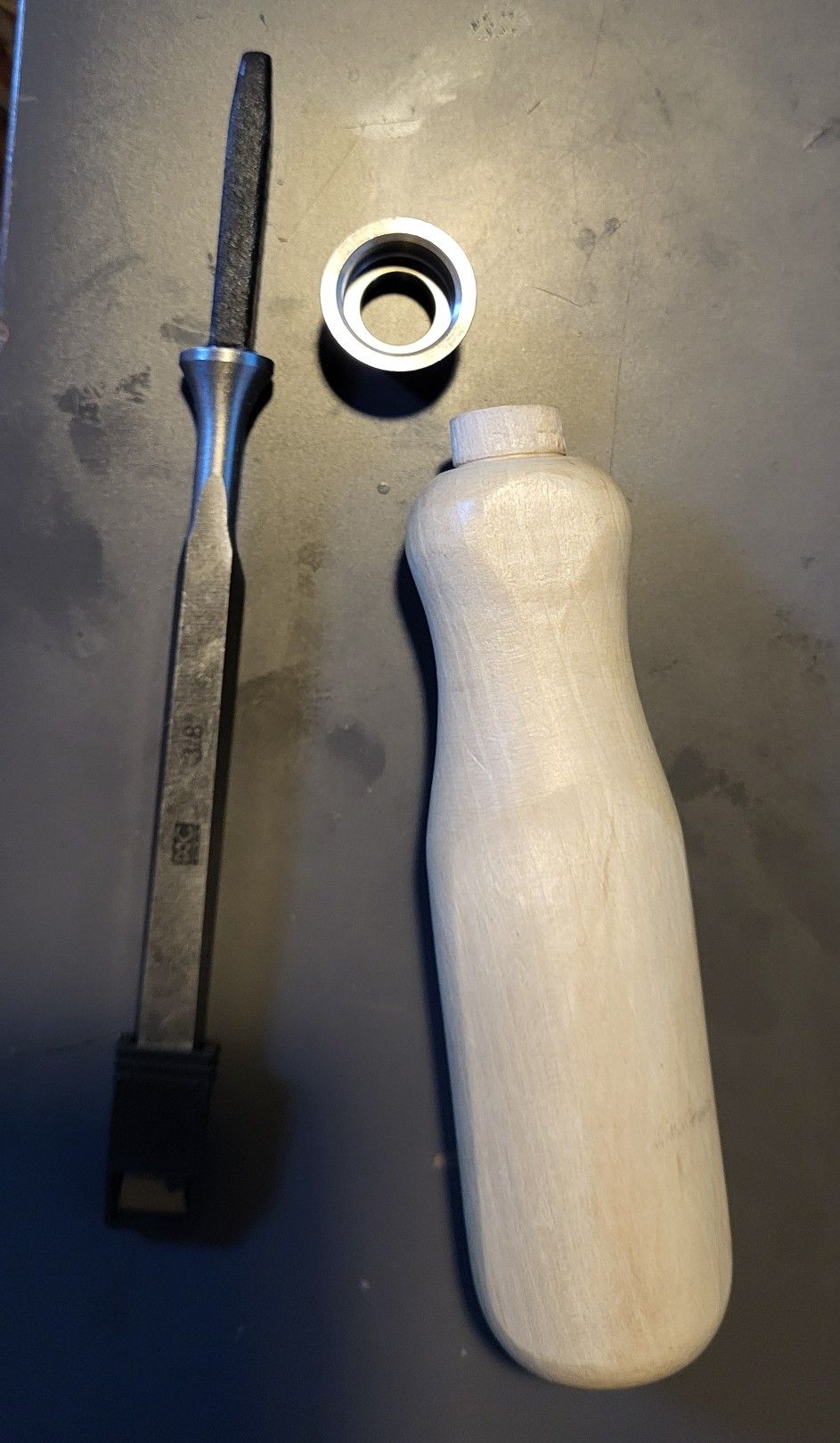

One of the six chisels I had was a little loose fitting, which gives me the opportunity to pull it apart easily. I guess the sensible fix for this will be epoxy. I hope nobody freaks out about glue and “irreversibility” because there’s a simple fix when you epoxy on a handle and you want to get rid of it. you cut it off, chisel it off and then chisel or file the epoxy off of the tang. you could do this fifty times without removing appreciable metal from the tang.

At any rate, since these aren’t “my make”, I’m not going to make any handles for the chisels and press fit them into the ferrules. Here’s the picture:

Sort of a weird hybrid setup. The tenon off of the chisel end is a stub, and the cup instead of being a thin ferrule all the way down is pretty thick at the bottom and the whole thing kind of half does what you’d expect by meeting in the middle. The tang is plenty long enough and epoxy will do the rest of the work in this case. If the others come loose, they’ll get the same fix.

the fit is kind of half assed press fit in a round tang. I obviously have “mr important” opinions here from fitting longer tapered tangs without glue, but it’s really a touch thing and requires some time as well as adjustment of the tang for straightness. No way that’s going to happen on production chisels of any type. So this seems pretty decent. Beats the hell out of thin flat stock chisels that have a tiny tang and ask you not to hit anything with a hammer.

I could “class up” these chisels later by putting a straight brass ferrule and a more classic handle on them, but as close or right on my best work as these our, i’d better spend my time seeing if I can find any more improvement in heat treatment before an $8 chisel embarrasses my pet 26c3 work.
